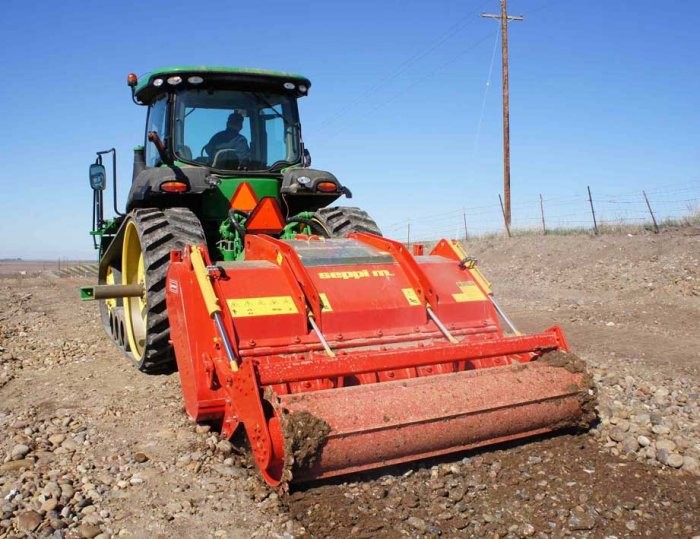

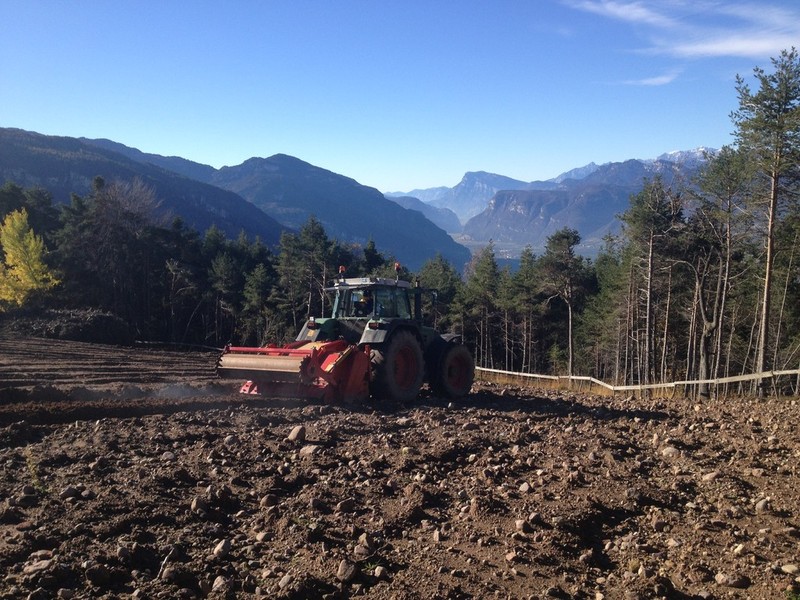

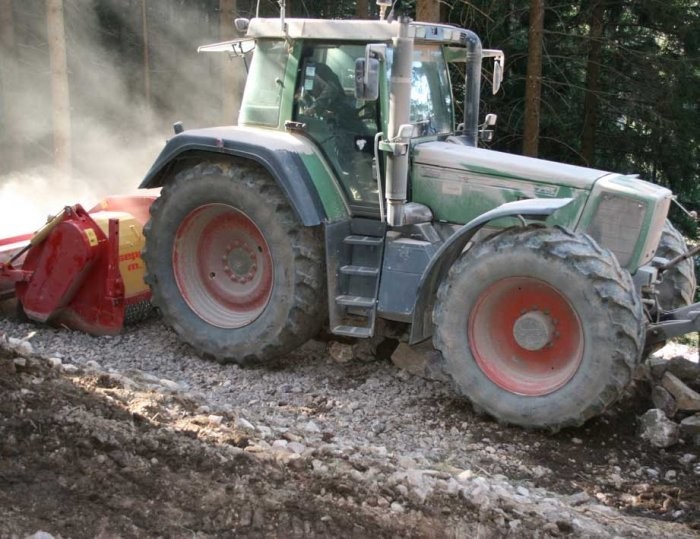

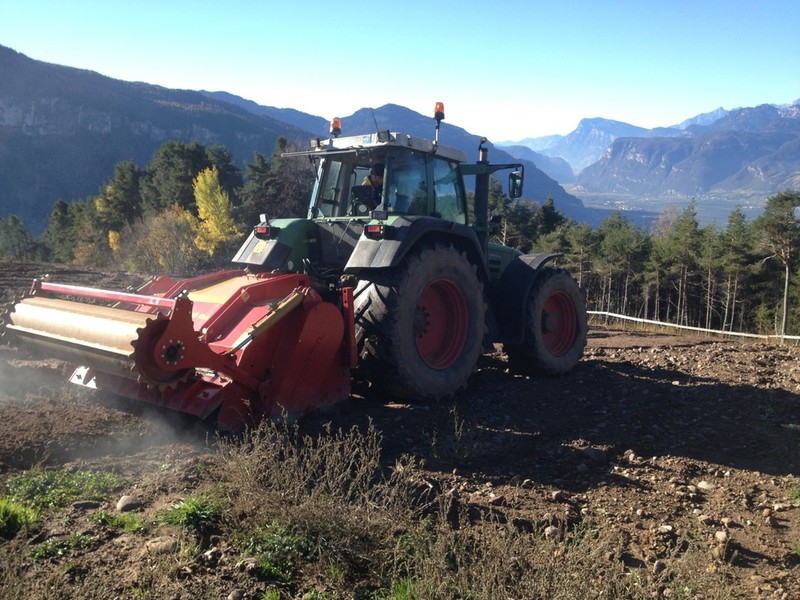

APPLICATIONS - Forestry, Agriculture, Land Clearing, Site Preparation, Vegetation Management, Stabilisation, Road Resurfacing, Stump Grinding



OVERVIEW

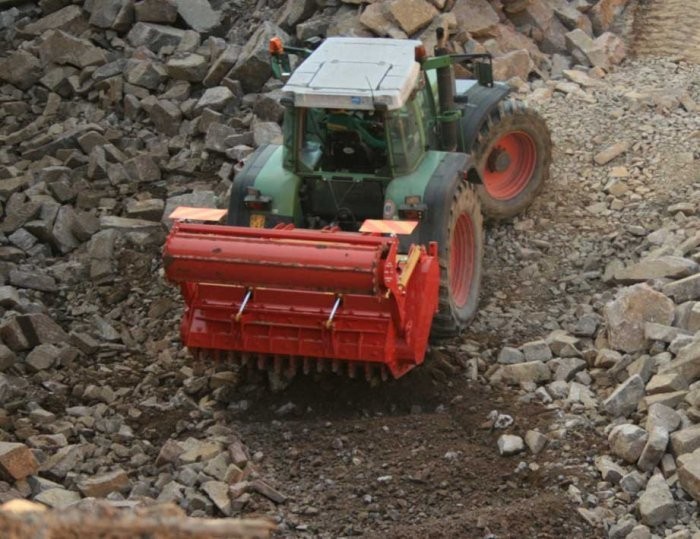

• Crushes stones up to 40cm [16”] Ø
• Mulches stumps and roots up to 50cm [20”] Ø
• Tills the soil as deep as 30 cm [12”] and deeper, depending on the working conditions
• Working speed 0.5–2 kph
• Cat. 3 central fixed ISO 3-point
• Rear linkage
• Gearbox for 1000 rpm
• Input shaft: 1 3/4” Z=20
• Double drive
• ADAM (TM) alignment system
• Hydraulically operated hood
• Replaceable anti wear chassis
• Narrow in-depth skids
• Protection: double chains
• Rotor: combination of tungsten carbide tip hammers
• ULTRA MONO PROTECT + MONO & ULTRA EXTREME, anti-wear knife holder
