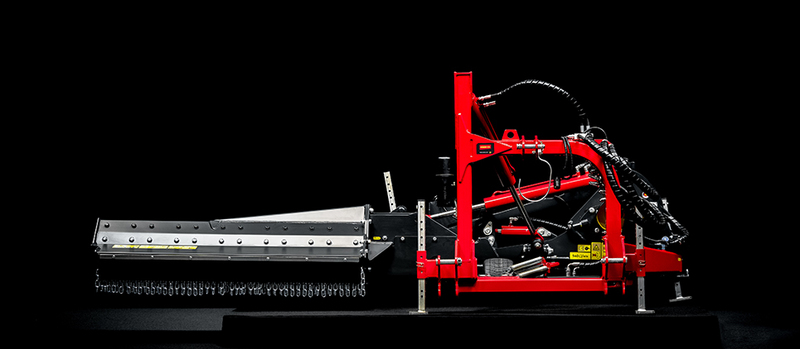

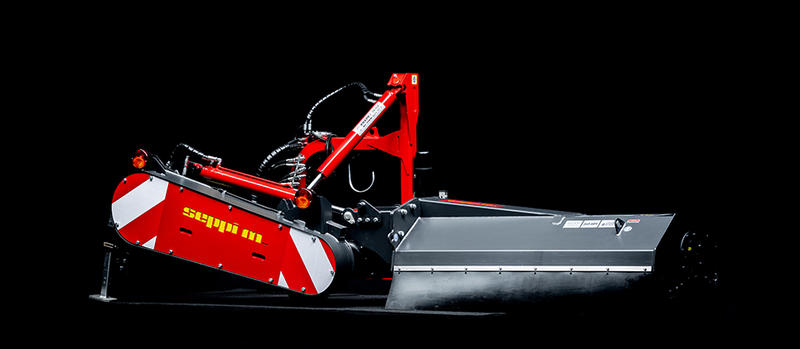

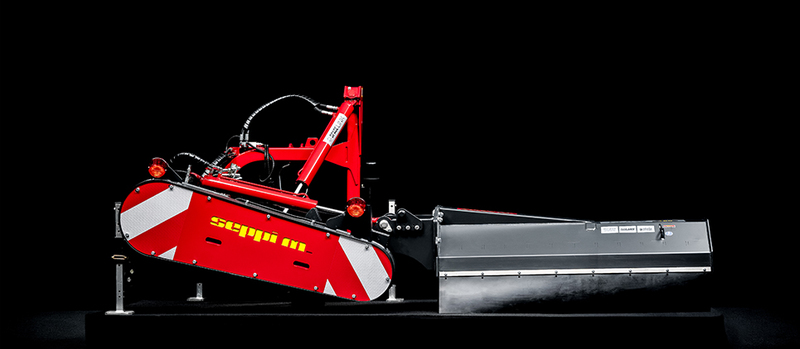

L7 FLEX

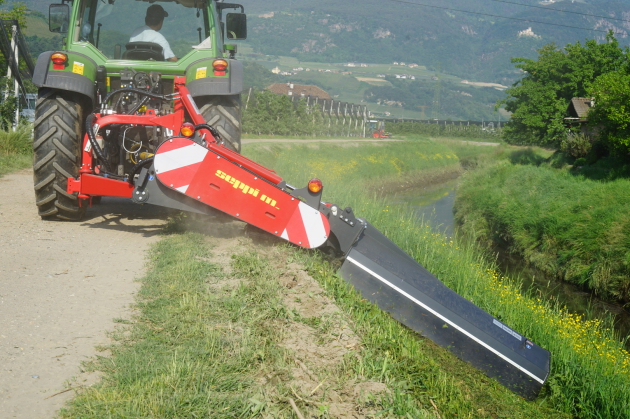

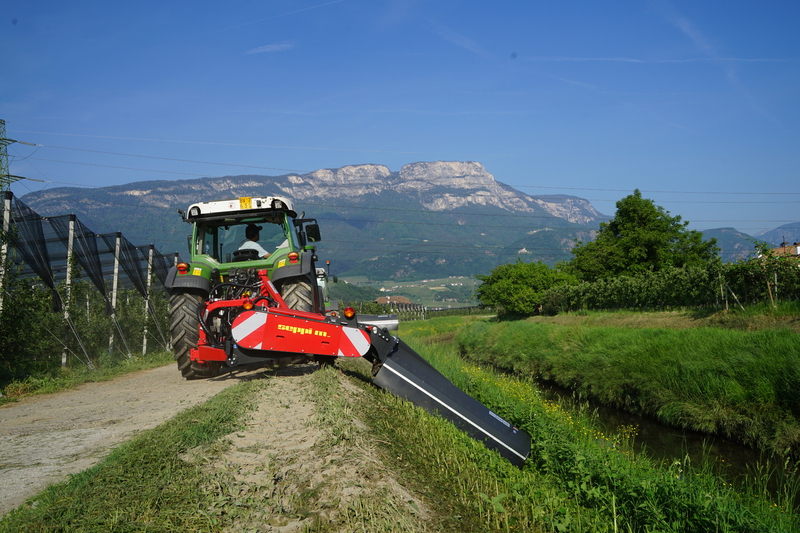

Offset mulcher for PTO/tractor 80-160HP mulches grass & prunings up to 7cm (2.8")

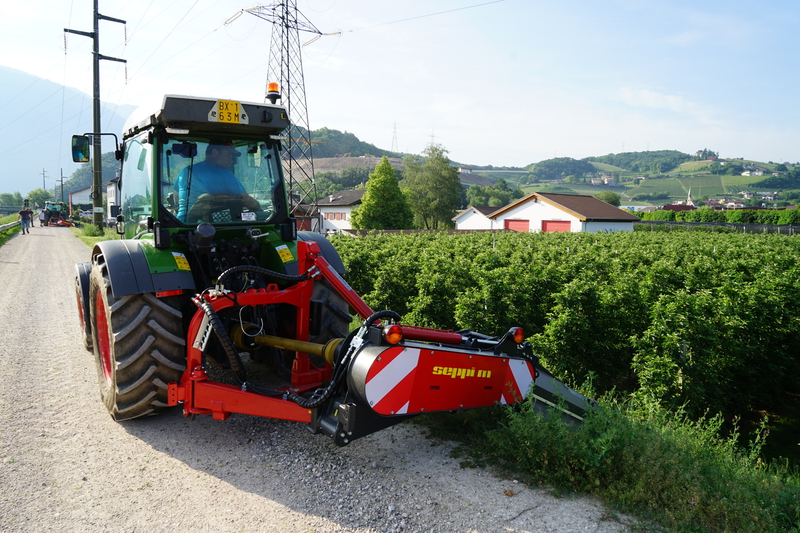

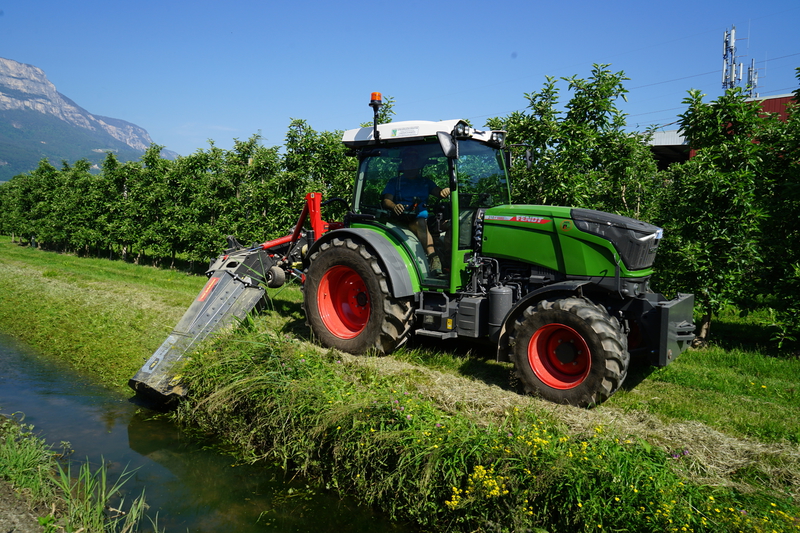

APPLICATIONS - AGRICULTURE, ORCHARDS, ROADSIDE MAINTENANCE, PARKS & GREENSPACE
STANDARD VERSION
- Mulches grass and bushes up to 7 cm [2.8”] Ø
- Working speed 3-10 km/h
- Chassis made of high tensile steel S420 with internal replaceable wear plates
- ISO 3-point rear linkage cat. 2
- Efficient contour adaption with hydraulic SPACE LINK suspension
- FLEX-SAFE anti-shock system with spring return
- Gearbox 540 rpm with freewheel
- Hydraulic positioning from +90° to -65°
- Hydraulic parallel side shift 96 cm [39"] to the right
- Required hydraulic fittings: 3 double acting
- Input shaft 1 3/8” Z=6
- Transmission with 5 belts
- Support wheel under the base unit, adjustable roller under the mulcher reinforced bearings and roller 4D-Roller
- Rear protection with rubber flap
- Front protection with rubber flap and chains
- Rotor wall thickness: 12,5 mm
- Triple helical rotor with flails HELIX ROTOR ≤ 200: SMO · ≥ 225: SMW
- 2 rows of replaceable tempered COUNTER CUTTERS
- Chevrons
- Colors: charcoal RAL7021| red RAL3020
OPTIONS
- PTO drive shaft with double wide angle
- Gearbox 750 rpm or 1000 rpm
- Roller scraper
