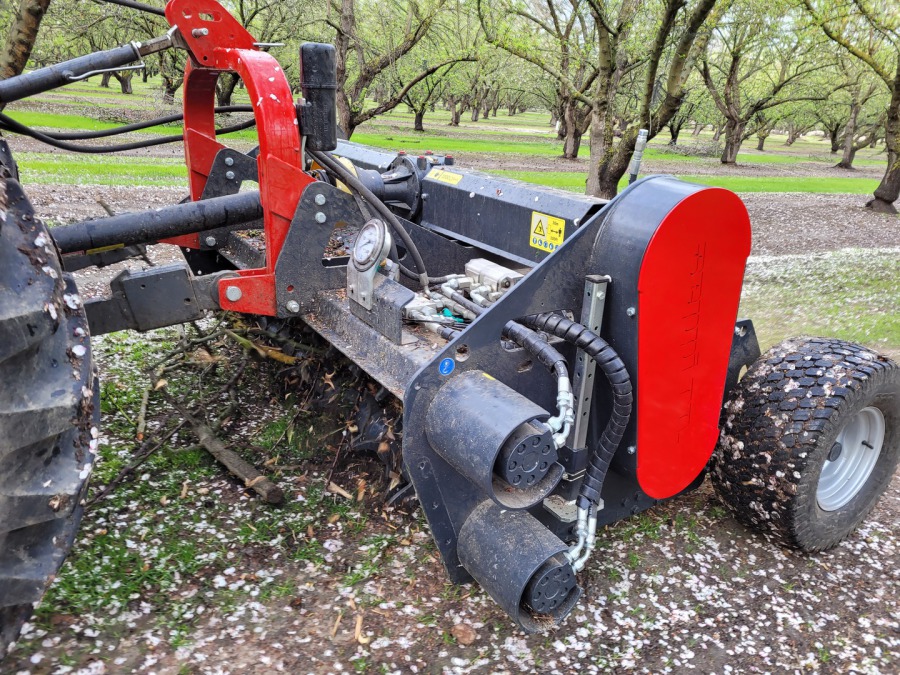

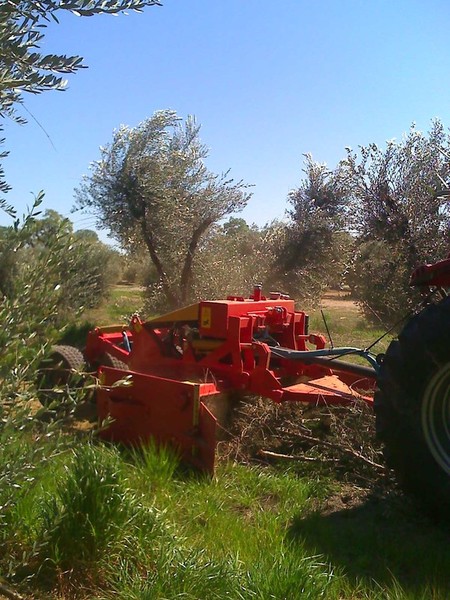

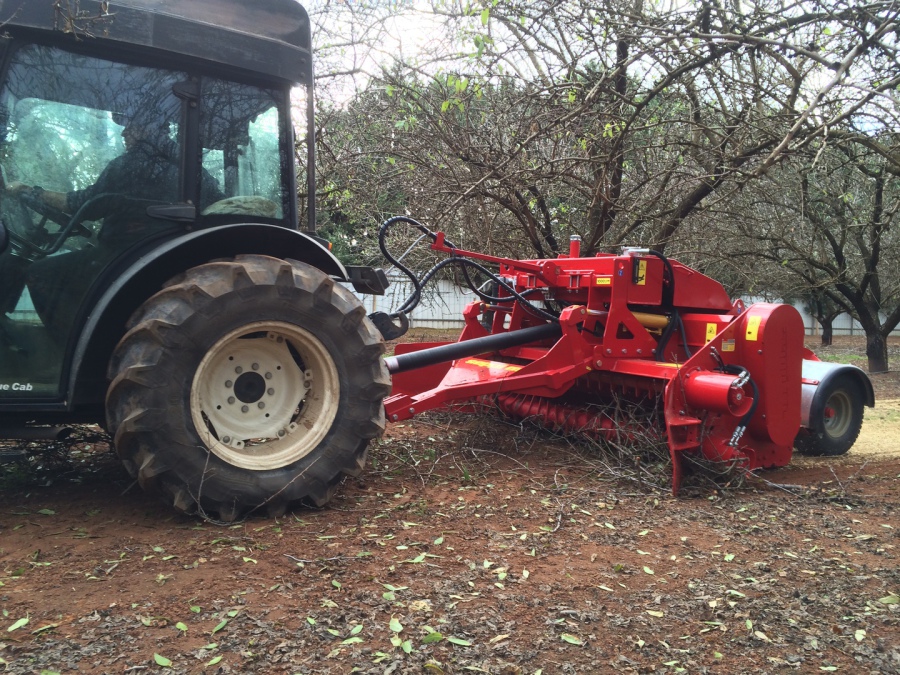

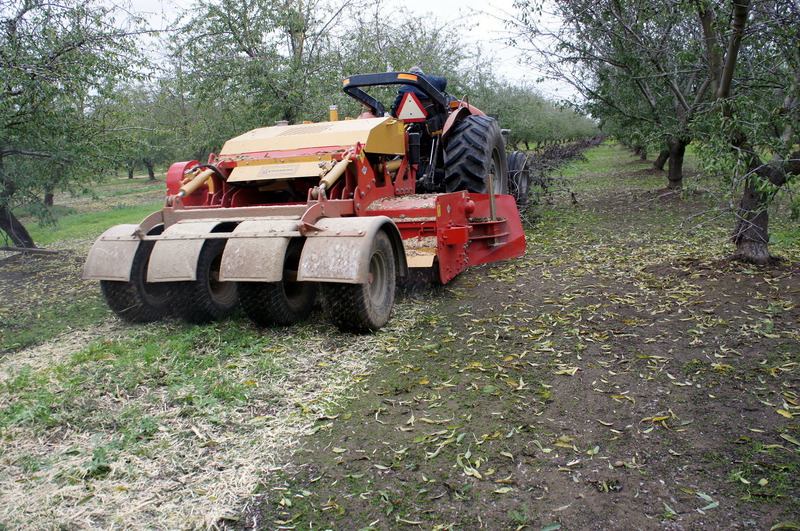

WBS DT PICK-UP

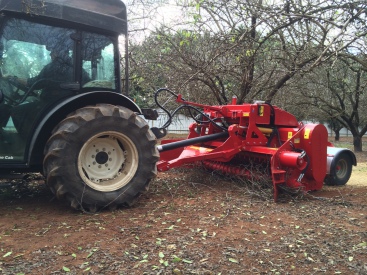

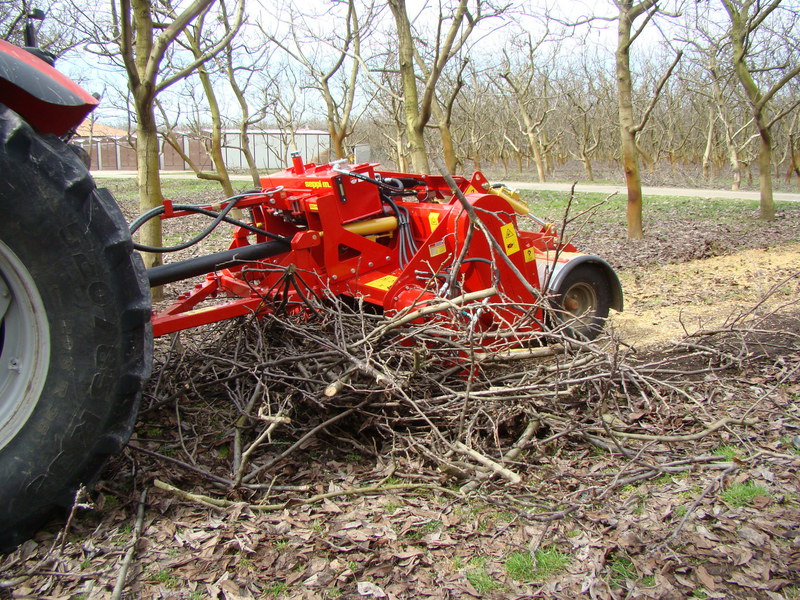

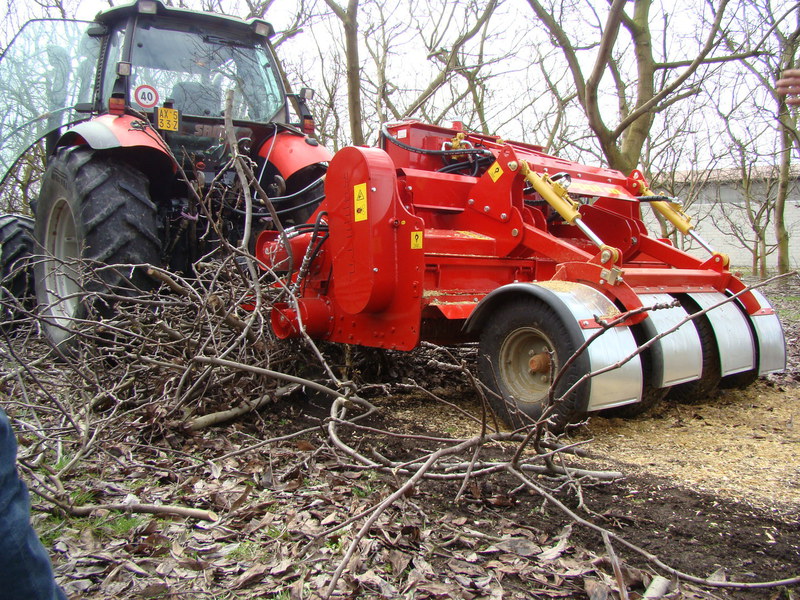

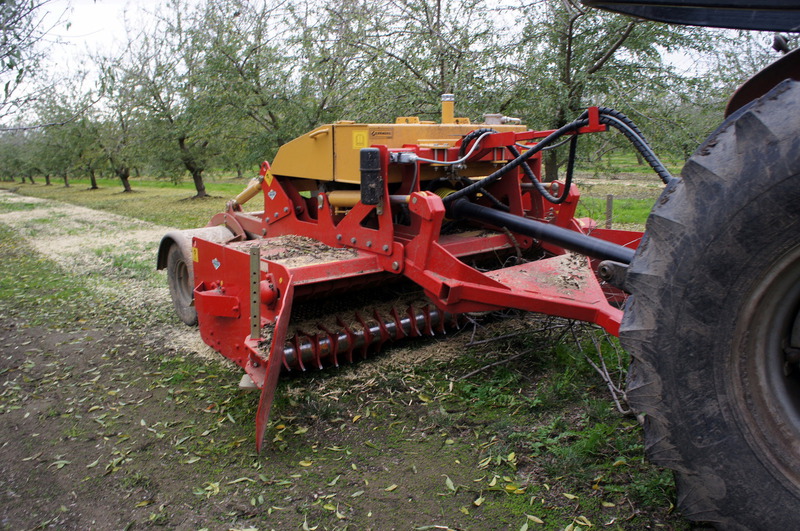

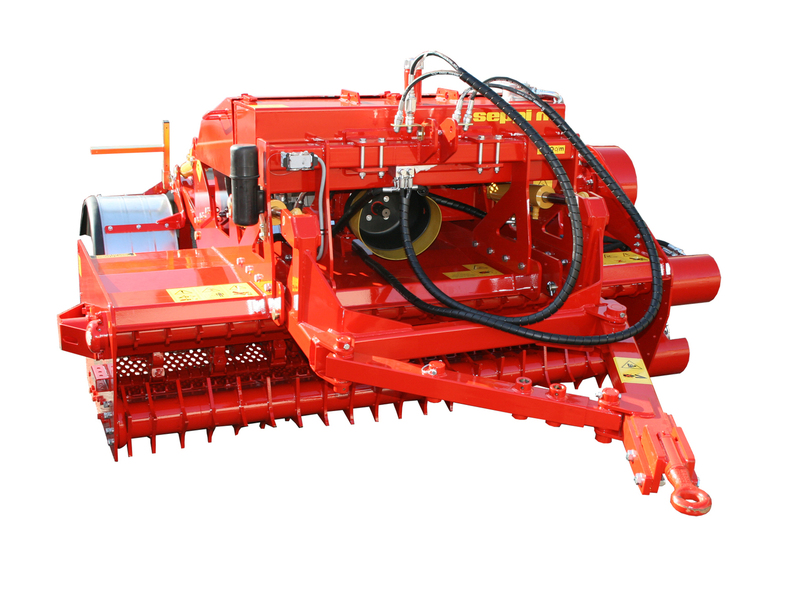

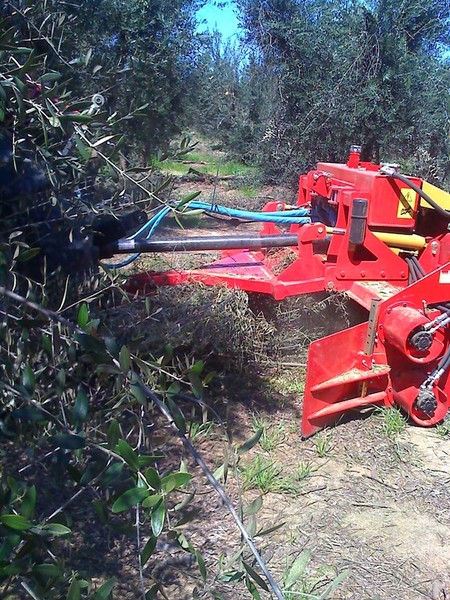

Forestry Pick-Up mulcher for PTO/tractor 100-200HP

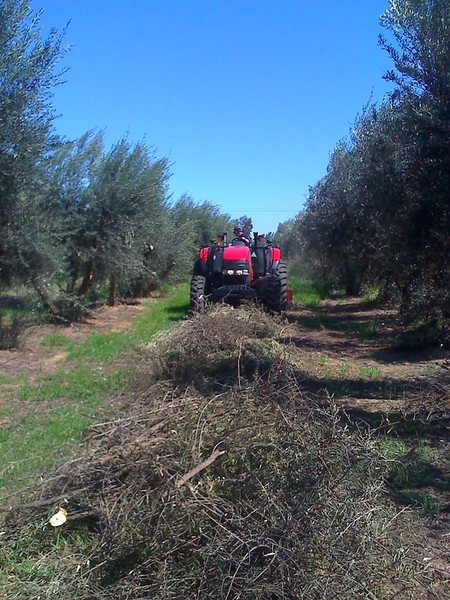

collects and mulches prunings up to 11cm (4.3")

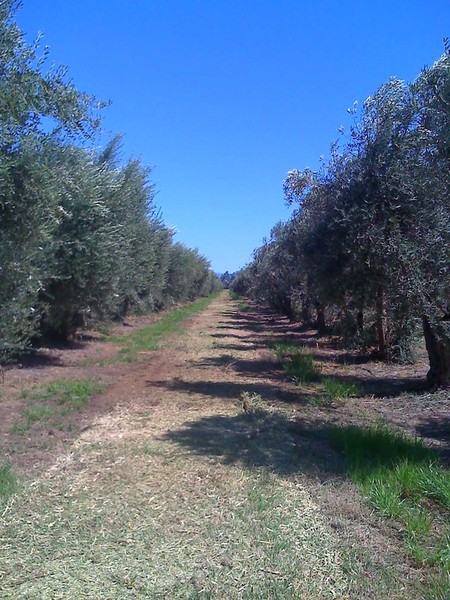

APPLICATIONS - Agriculture, Orchards, Vineyards, Parks, Forestry



OVERVIEW

• Mulches grass and prunings up to 11 cm [4.3”] Ø
• Working speed 1–3 kph
• 1000 rpm gearbox with freewheel
• Input shaft 1 3/4”, 6 spline
• Double skin casing
• No. of belts; 5
• Rear hood with manual opening
• 4 support wheels for road transport, with hydraulic adjustment
• Draw bar hydraulically adjustable in height
• Rear protection: rubber flap
• Double pick-up rotor
• 2 independent hydraulic circuits for pick-up rotors
• Rotation sense inversion
• Remote control
• Speed control
• Anti-wear mulching grid
• Standard rotor: tungsten tipped fixed knives (see below)
